Choj Pom Tshuab Granite

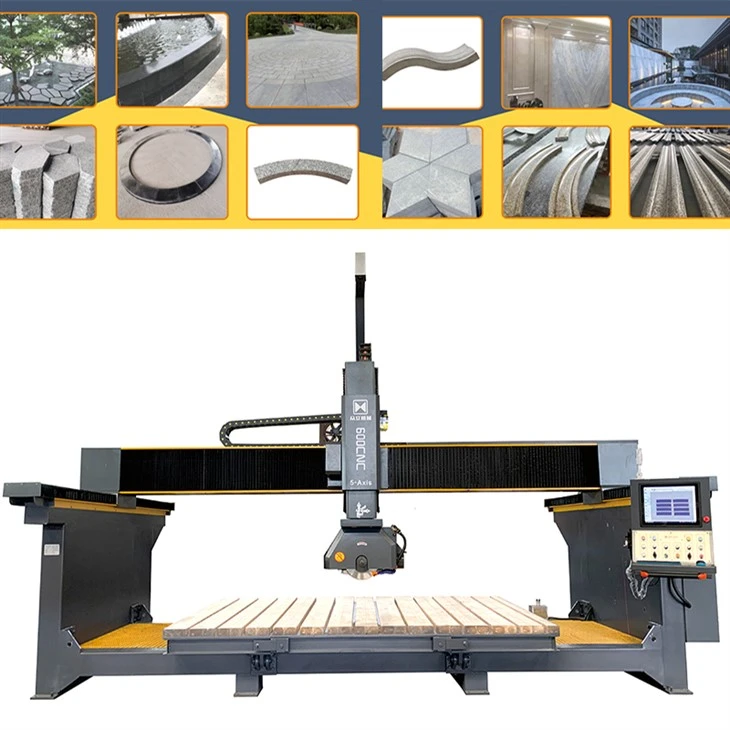

Tsis Siv Neeg Granite Txiav Tshuab, Qauv ZLBS-600CNC/5A 5-axis ntse cutters muaj rau kev ua marble, granite, quartz pob zeb, ceramic, porcelain thiab lwm yam ntaub ntawv. Nws tuaj yeem siv tau sai thiab yooj yim vim nws zoo heev precision thiab efficiency. Tom qab thaij duab thiab xa cov duab kos duab rau lub pob zeb, lub tshuab yuav pib ua haujlwm ntawm nws tus kheej. Cov khoom tseem ceeb ntawm lub tshuab hom ZLBS-600CNC/5A tuaj yeem khaws cia rau hauv lub thawv ntim siab.Peb muab kev pabcuam OEM/ODM.Option: tus kheej system lossis ESA kho vajtse nrog Pegasus software los ntawm Ltalis.
Xa kev nug
Khoom Taw qhia



product-800-800

Qauv

ZLBS{0}}CNC/5A

ZLBS{0}}CNC/5A

(tsim tshwj xeeb)

Chav tsev

Worktable loj

L3500*W2000

L3500*W2000

mm

Kev ua haujlwm siab tshaj plaws

L3500*W2000*H500

L3500*W2000*H800

mm

Hniav txoj kab uas hla

₵350-600

₵350-600

mm

Tswj chaw

kev lag luam computer nrog CNC

kev lag luam computer nrog CNC



Tsav lub cev muaj zog

Servo lub cev muaj zog

Servo lub cev muaj zog



Main lub cev muaj zog

22 (permanet hlau nplaum lub cev muaj zog nrog zaus)

22 (permanet hlau nplaum lub cev muaj zog nrog zaus)

kws

Tag nrho lub zog

35

33

kws

Lub taub hau tig

0 degree -360 degree

0 degree -360 degree



Lub taub hau qaij

0 degree -90 degree

0 degree -90 degree



worktable tig

85 degree

tsis muaj



Kev siv dej

2

2

m³/h

Tag nrho qhov hnyav

6

6

t

Qhov ntev

L5750 * W3260 * H4100mm

L5750 * W3260 * H4100mm

mm

Muab qhov ntev

L5750xW2200xH2500mm

L5750xW2200xH2500mm



Kev xa tawm

Qhov tseem ceeb xa tag nrho nyob rau hauv ib lub thawv high-lub voos xwmfab

Qhov tseem ceeb xa tag nrho hauv ahigh-lub voos xwmfab thawv





Nqe

Qauv

Tus kheej qhov system nrog tus nqi yooj yim 3D Base (USD)

Kev xaiv: ESA System

Kev xaiv: Kub Galvanized (USD)

Kev xaiv: pem hauv ntej zawv zawg qhov rooj

ZLBS{0}}CNC/5A (Hnyav plaub ntug)

32000

+5000

+2000

+2000



Feature



1: Lub tshuab yog lub luag haujlwm hnyav sib koom ua ke; nws muaj zog, siv qhov chaw tsawg dua, thiab yooj yim rau nruab thiab txav mus los.



2: Nrog lub tshuab computer thiab 17 "xim kov-screen.



product-1279-627



3: Siv lub koob yees duab los nrhiav qhov chaw ntawm lub phaj thiab tso rau hauv cov txheej txheem txiav.



product-300-376



4: A 22-KW lub cev muaj zog hlau nplaum tuaj yeem raug txiav nrog rau cov tuab ntawm cov phaj txiav, tuaj yeem kho lub zog tso zis, lub zog, thiab lub zog txuag ib puag ncig tiv thaiv.



5: Lub kaw lus muaj lub tsev qiv ntawv built-in ntawm cov duab kos duab zoo ib yam thiab tseem txhawb nqa DXF hom kev xa tawm los ntawm tus tsim qauv lossis ntsuas ntsuas ntsuas ntsuas.



product-1500-573



6: Kev xaiv: Lub tshuab chassis tuaj yeem kub-dip galvanized, thiab lub rooj ua haujlwm tuaj yeem ntsib nrog cov ntawv yas thiab roj hmab.



Daim duab thiab Video



2

3

five axis brigde saw



Kev xa khoom



3

2



Hoobkas



product-1200-809

product-1200-900

product-1200-675

20230531150759gai



Hwm

gai

product-1200-601

Choj pom tshuab granite yog ib qho khoom siv siab heev uas yog tsim los ua kom granite ua tau yooj yim dua thiab ua haujlwm zoo dua. Lub tshuab thev naus laus zis no zoo tagnrho rau kev txiav thiab tsim ntau yam khoom siv granite, suav nrog cov txee, vuas, thiab slabs.



Ib qho tseem ceeb tshaj plaws ntawm tus choj pom tshuab granite yog nws lub peev xwm los txuag lub sijhawm thiab kev siv zog. Nrog nws cov peev xwm txiav tsis siv neeg, lub tshuab no tuaj yeem ua cov khoom loj ntawm granite sai thiab nrog tib neeg cov tswv yim tsawg. Qhov no ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov chaw tsim khoom thiab cov lag luam uas xav tau los tsim cov khoom lag luam granite ntau zaus.



Ntxiv rau nws cov txiaj ntsig txuag lub sijhawm, tus choj pom tshuab granite kuj yog qhov tseeb tsis txaus ntseeg. Ua tsaug rau nws cov txheej txheem tswj hwm lub khoos phis tawj siab, nws tuaj yeem ua kom raug txiav uas ua rau cov khoom lag luam zoo li granite txhua lub sijhawm. Qhov kev txiav txim siab no yog qhov tseem ceeb tshwj xeeb rau cov lag luam uas xav tau kom xa cov khoom zoo rau lawv cov neeg siv khoom.



Lwm qhov zoo dua ntawm tus choj pom tshuab granite yog nws cov neeg siv-phooj ywg interface. Cov neeg ua haujlwm tuaj yeem ua haujlwm yooj yim rau lub tshuab kom ua tiav cov qauv txiav thiab cov duab, uas ua rau nws yooj yim los tsim cov khoom lag luam. Cov yam ntxwv no tseem tso cai rau cov lag luam los ua ntau yam ntawm cov haujlwm, txij li lub tshuab tuaj yeem hloov tau yooj yim kom haum rau ntau hom khoom granite.



Nyob rau hauv cov nqe lus ntawm kev txij nkawm, tus choj pom tshuab granite yog heev tsawg-tu. Nws yog tsim los tiv thaiv kev hnav thiab tsim kua muag ntawm kev siv txhua hnub, thiab nws cov khoom thiab cov khoom siv tau tsim kom kav ntev. Qhov no txhais tau hais tias kev lag luam tuaj yeem tso siab rau lub tshuab no tau ntau xyoo yam tsis tas yuav txhawj xeeb txog kev kho kim lossis hloov pauv.



Zuag qhia tag nrho, tus choj pom tshuab granite yog kev nqis peev zoo rau cov lag luam uas yuav tsum tau ua cov khoom loj ntawm granite sai thiab raug. Nws lub sij hawm-txuag, txuag tau, thiab automated tsim ua rau nws ib tug indispensable cuab tam rau tej granite ua chaw, thiab nws cov neeg siv-phooj ywg interface xyuas kom meej tias cov tswv yuav yooj yim kho lub tshuab kom haum lawv cov kev xav tau. Nrog nws cov kev tu ncua qis thiab cov txiaj ntsig zoo, tus choj pom tshuab granite yog qhov yuav tsum muaj rau txhua lub lag luam uas xav kom nyob ua ntej ntawm kev sib tw hauv kev lag luam granite.
